Raspberry Pi to control blinds or shades

I wanted to lower the shade on my deck every morning automatically on a schedule.  Here is a video of it working

Shade lowered

Parts list

  • Raspberry Pi version B+ I had laying around

Raspberry Pi 1 model B+

Power supply

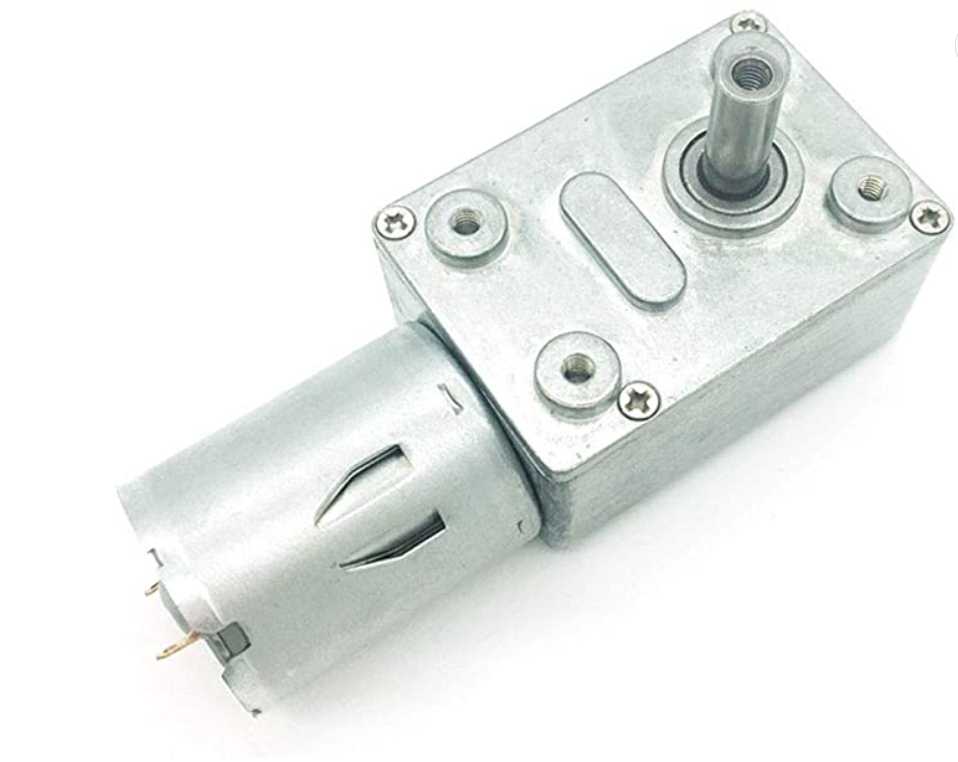

  • Bringsmart 12V 40rpm Worm Gear Motor Self-locking DC Motor Amazon $14.99

Motor worm drive

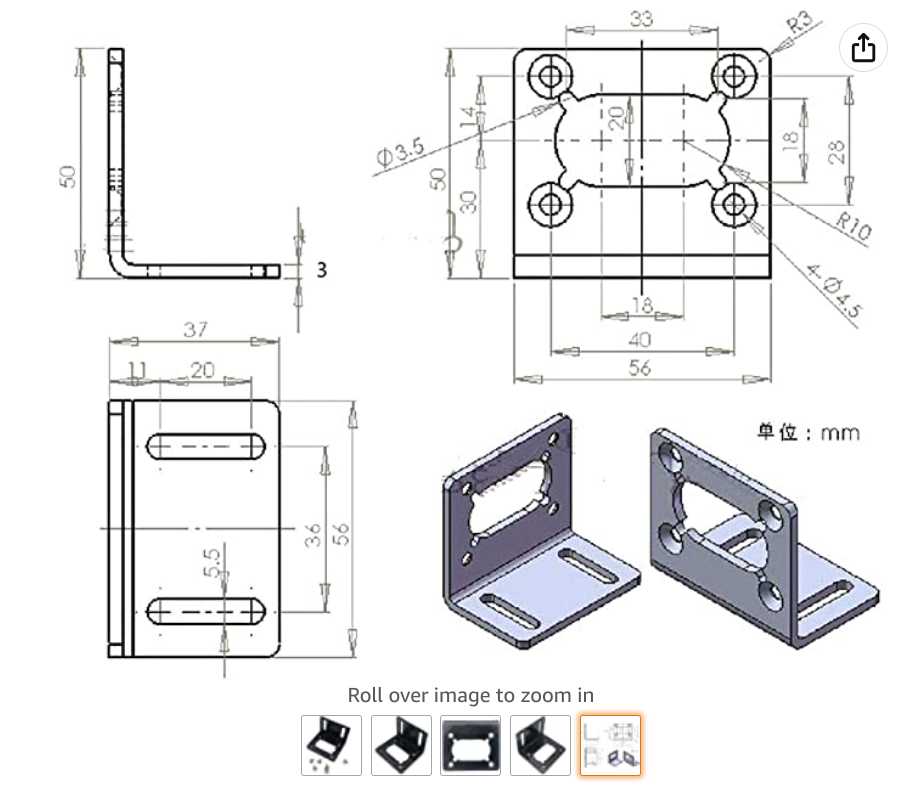

  • Bringsmart 370 Mounting Bracket with Screw Worm Gear Motor Fixed Fastener Amazon $8.99

Mounting bracket

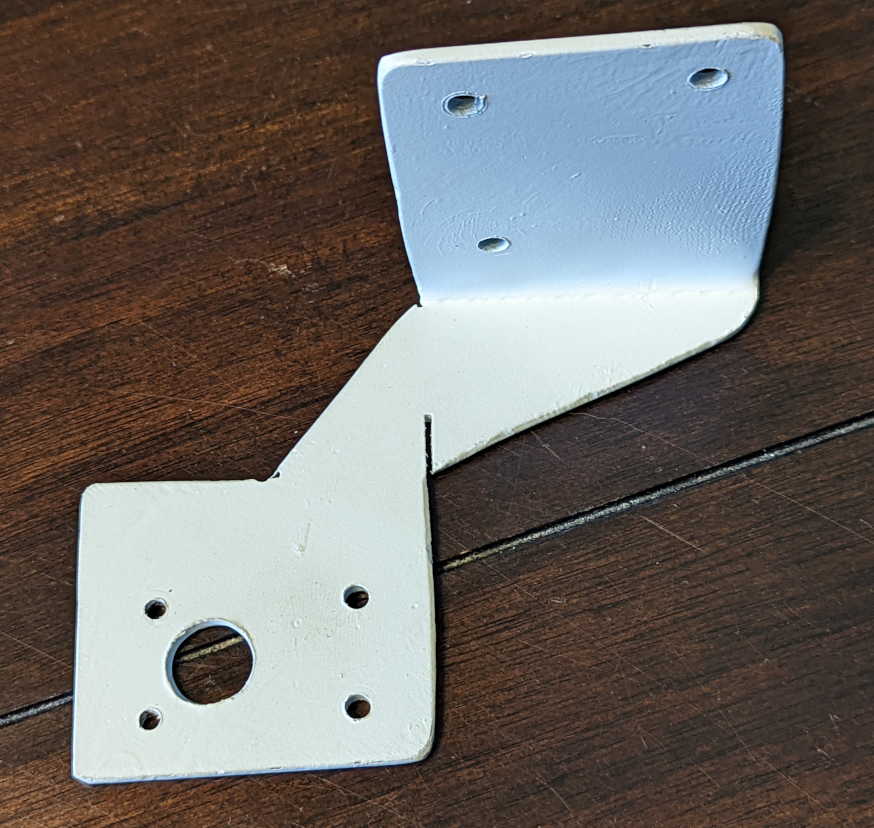

  • Decided to make my own custom motor bracket using the above as a guide

Custom motor bracket

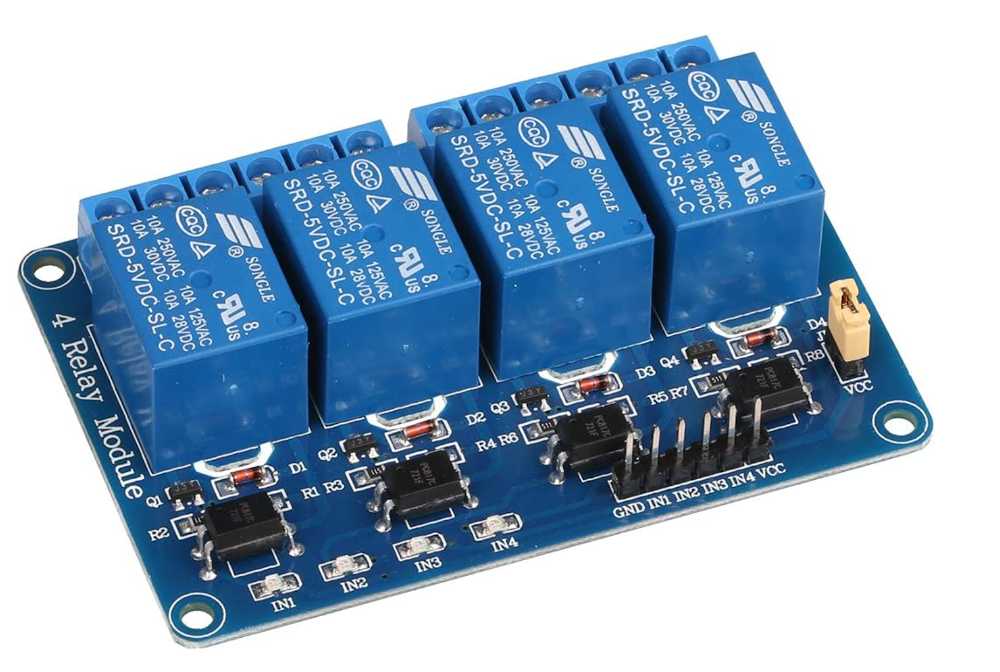

Relay

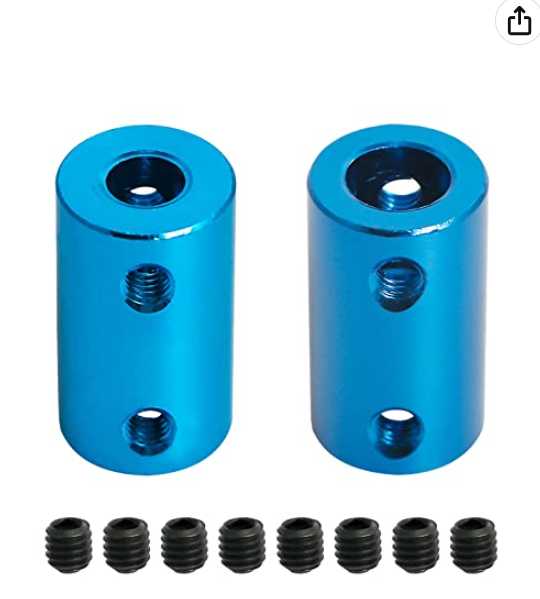

  • Aopin 6mm to 8mm Rigid Couplings Set Screw Shaft Amazon $9.19

Shaft for motor

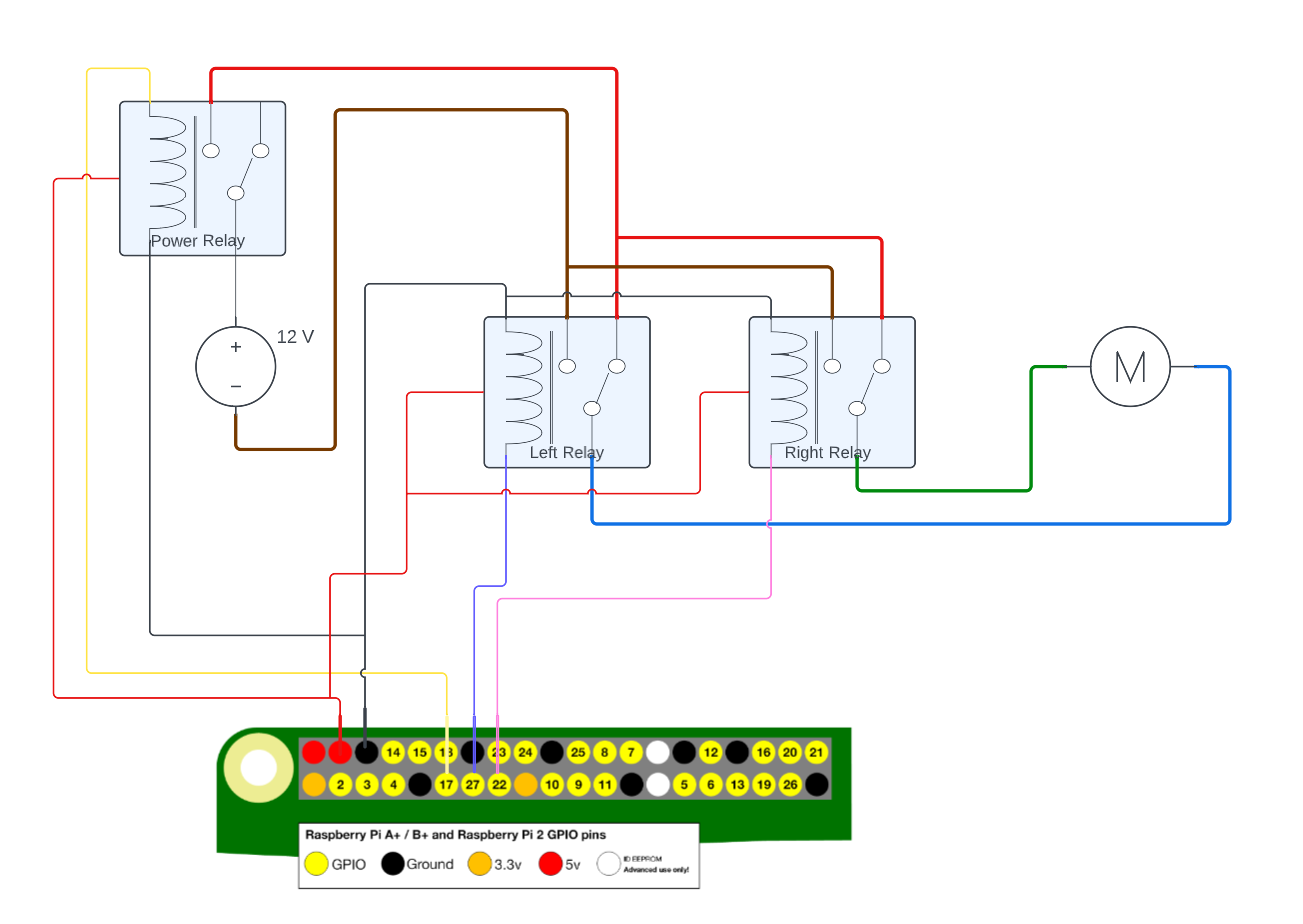

  • Wiring Instructions for reversible motor with power switch

Wiring Diagrams

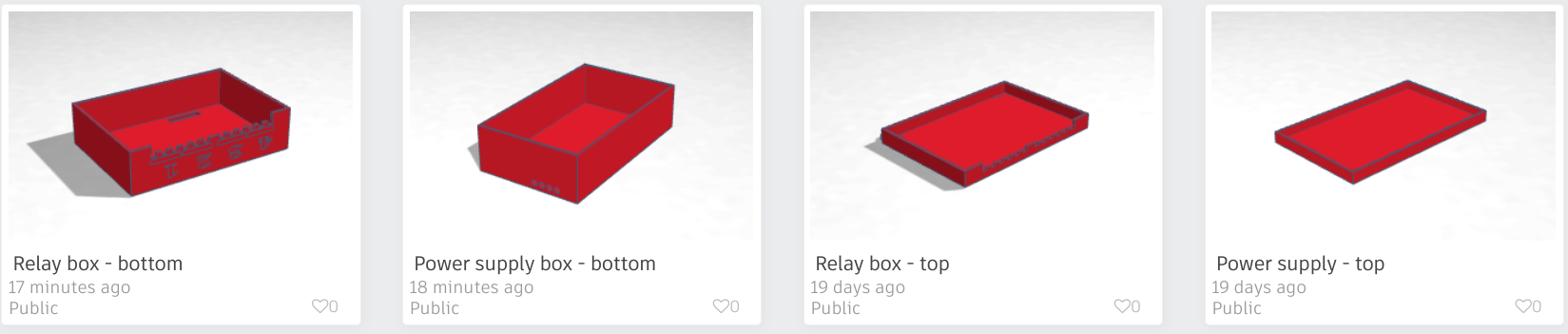

  • 3D boxes to hold power supply and relay

Cases

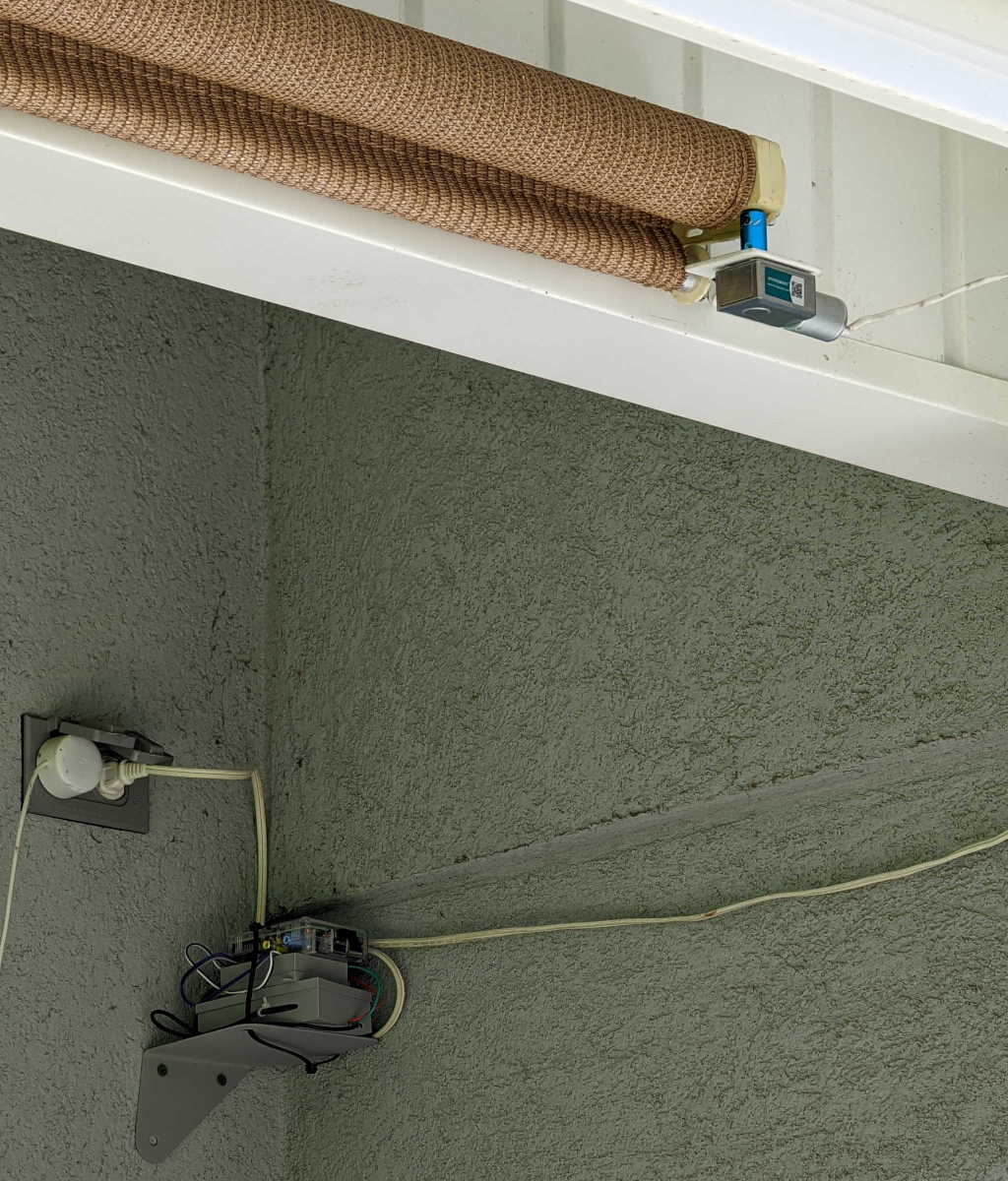

Installed Product

Installed Blinds
